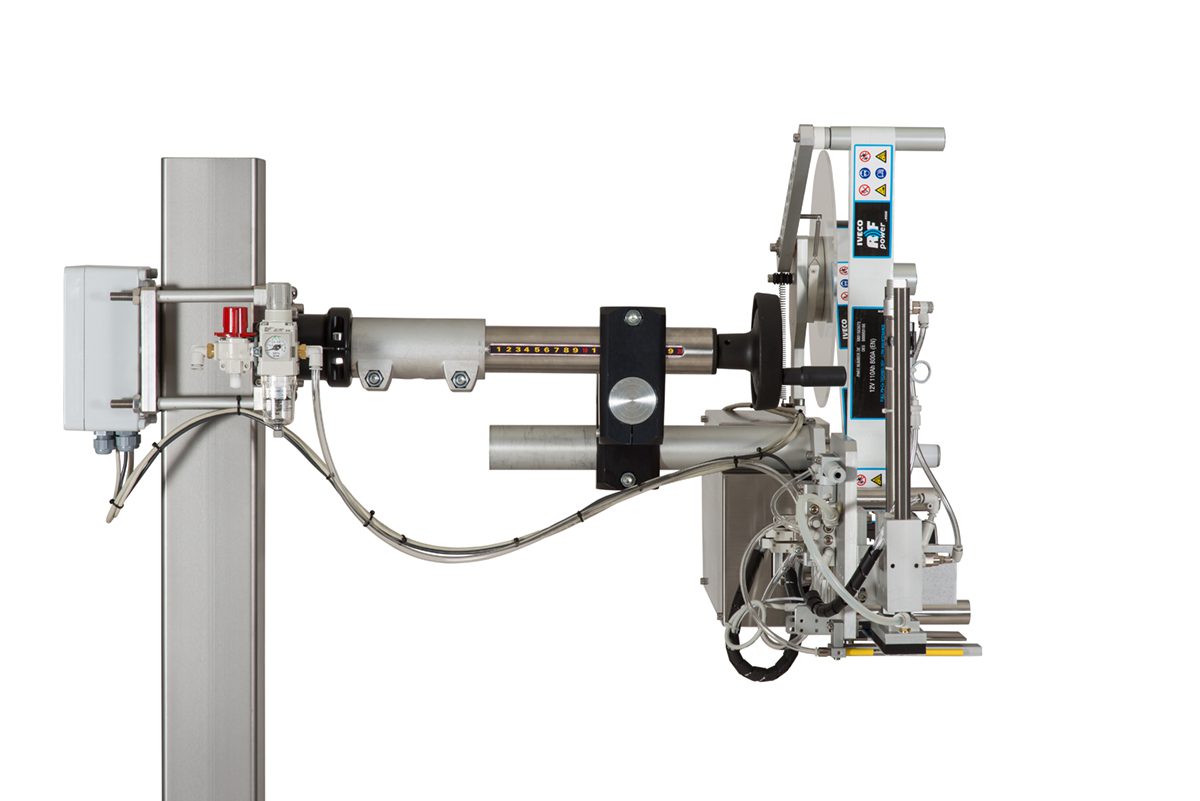

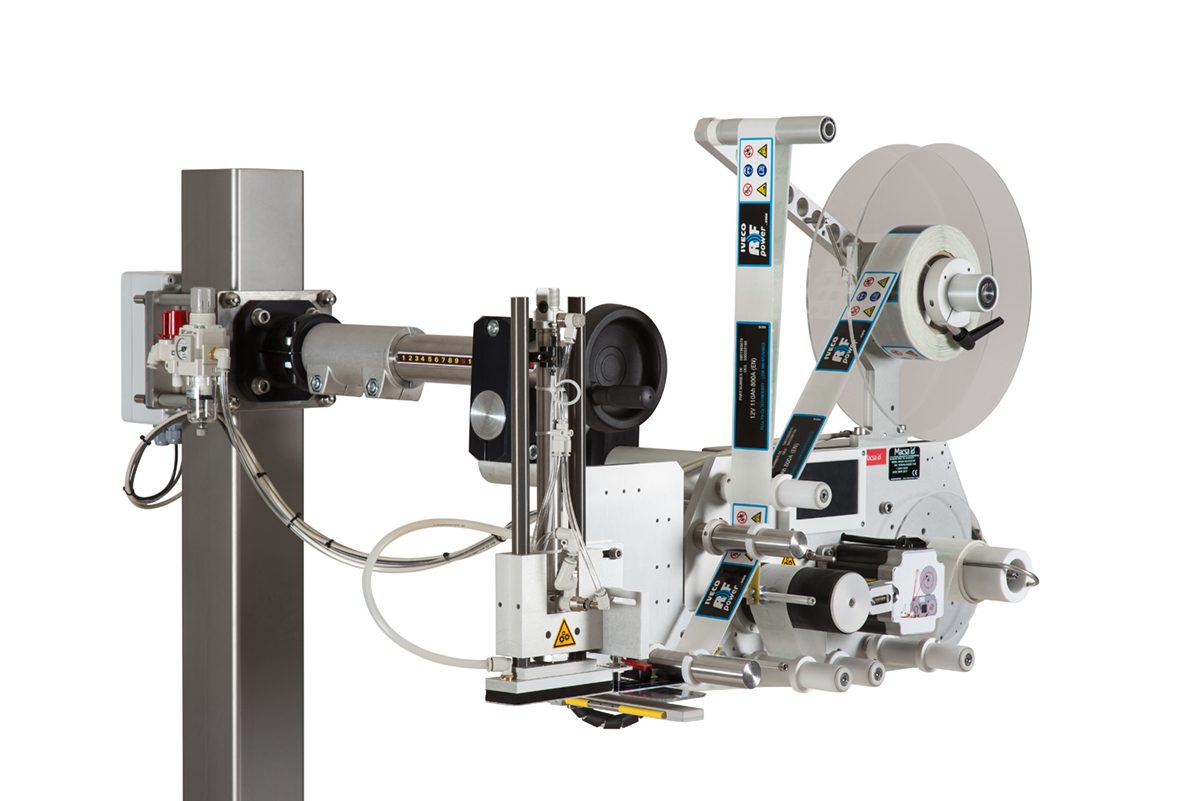

MLA 5050 VERSION SP & PR

The MLA 5050 SP & PR is a high-speed blow label applicator for contactless labelling of products, packaging, cartons and outer cases. It uses a controlled air-blow process to apply labels without the applicator touching the product surface.

Designed for industrial identification and traceability applications, the MLA 5050 SP & PR can apply up to 150 labels per minute, depending on the label size, application distance, product format, conveyor speed and production-line conditions.

It is a practical solution for manufacturers that need fast, repeatable labelling on moving products, irregular packaging or applications where direct contact is not appropriate.

Contactless labelling for industrial production lines

The MLA 5050 uses a high-energy air-blow system to transfer the label from the applicator pad to the product or package.

Before application, a Venturi system holds the label securely in position. The label is then projected onto the selected surface using air, allowing reliable application without direct mechanical contact between the applicator and the product.

This contactless process is particularly relevant for:

• Fast-moving products and packaging.
• Uneven or irregular pack surfaces.
• Delicate products where mechanical contact should be avoided.
• Cases, cartons and outer packaging.
• Applications where the labelling point is difficult to reach with a contact arm.

High-speed label application

The MLA 5050 SP & PR is designed for high-cadence production environments and can apply up to 150 labels per minute.

Actual output depends on the label dimensions, product spacing, application distance, conveyor speed, label material, adhesive and surface condition. Macsa id assesses the final product and label before defining the correct configuration.

Testing the actual application helps validate label position, adhesion, application repeatability and required production rate before installation.

SP and PR versions for different labelling needs

The MLA 5050 is available in SP and PR configurations.

SP version for pre-printed labels

The SP version is designed to dispense and apply pre-printed labels. It is suitable when the label artwork and information are already printed before the production process.

PR version for print-and-apply labelling

The PR version can be configured with a printer to generate variable information directly on each label during production.

This is useful for labels containing:

• Batch and lot numbers.
• Best-before and use-by dates.
• Product references.
• Barcodes and 2D codes.
• QR codes and Data Matrix codes.
• Serial numbers and traceability data.
• Shipping, logistics and dispatch information.
• Variable text, logos and promotional content.

Label products, packaging and outer cases

The MLA 5050 SP & PR can be configured for labels from 30 × 30 mm to 110 × 110 mm.

Its contactless air-blow method makes it suitable for identification and traceability applications across a wide range of products and packaging formats. The final configuration depends on the label size, product dimensions, application face, required distance and line layout.

Typical applications include:

• Food and beverage packaging.
• Cartons and secondary packaging.
• Consumer goods.
• Pharmaceutical and healthcare products.
• Cosmetics and personal-care packaging.
• Logistics, dispatch and distribution cases.
• Industrial components and finished goods.

Integration with automated production lines

The MLA 5050 SP & PR can be integrated into automated production environments through configurable control and communication options.

Encoder synchronisation helps coordinate label application with variable conveyor speeds. External inputs and outputs support communication with sensors, conveyors and upstream or downstream equipment.

The system can also be configured with:

• Touchscreen operation for equipment settings and alarm management.
• Ethernet connectivity.
• End-of-label and paper-break alarms.
• Speed control and synchronisation functions.
• Production-line signals and external I/O.

This helps manufacturers maintain label accuracy while adapting the system to their specific line conditions.

Key features

• Contactless blow label application.
• High-energy air system for fast label transfer.
• Venturi label-holding system.
• Up to 150 labels per minute, depending on the application.
• Label sizes from 30 × 30 mm to 110 × 110 mm.
• SP configuration for pre-printed labels.
• PR configuration for print-and-apply labelling.
• Suitable for products, packaging, cartons and outer cases.
• Encoder synchronisation for variable conveyor speeds.
• Touchscreen, Ethernet and external I/O integration.

Configure the MLA 5050 for your production line

A successful blow labelling installation depends on more than the applicator itself. Product geometry, label format, adhesive, line speed, application distance and available space all influence the final result.

Macsa id assesses your production process and recommends the appropriate MLA 5050 SP or PR configuration for your application.

Explore our print and apply labelling machines or contact the Macsa id UK team to discuss your project.
