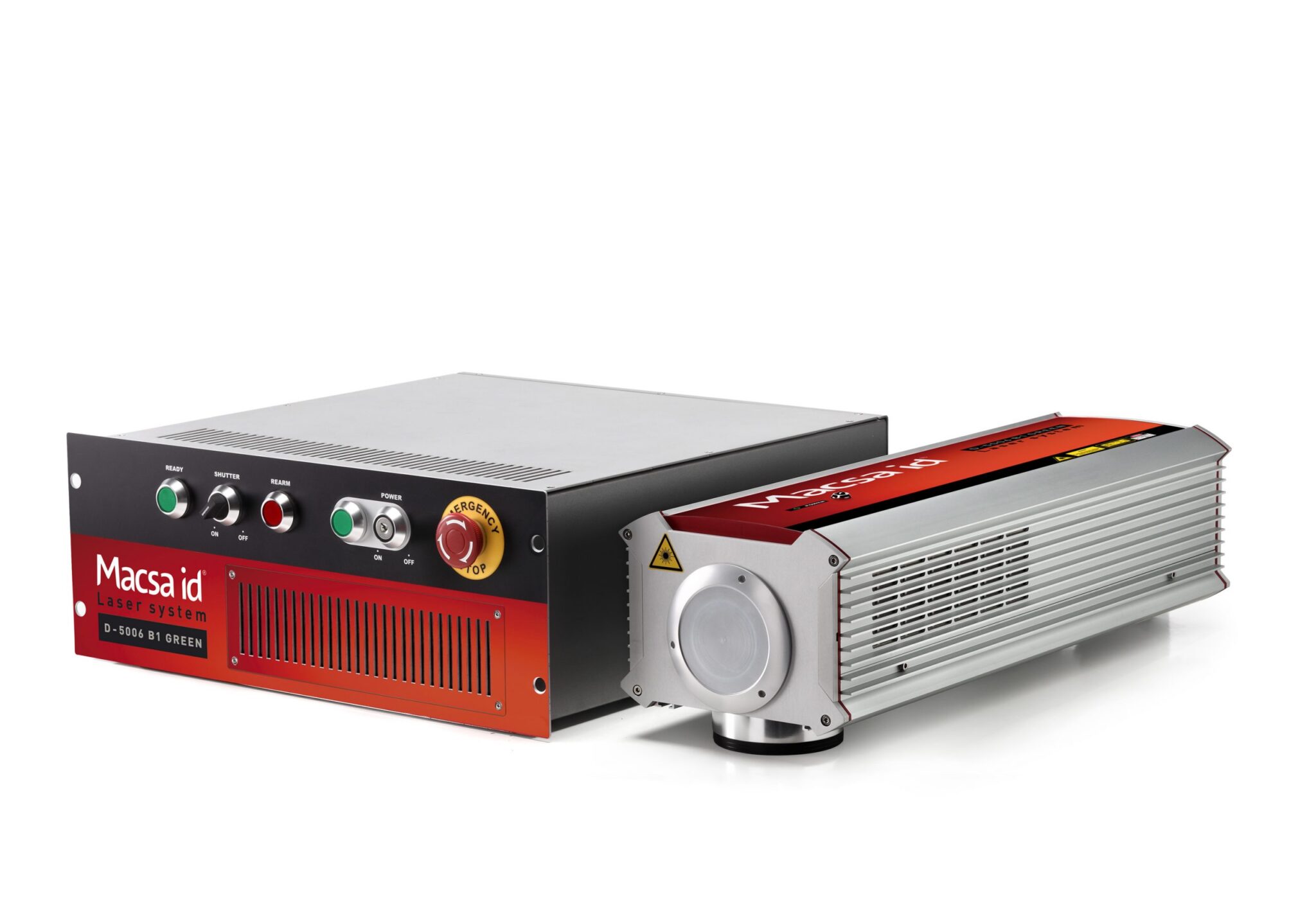

The D-5000 DUO Green Series is an air-cooled DPSS laser designed for applications that require clear, direct marking on selected plastics and sensitive substrates. Its 532 nm green wavelength, short pulses and high peak power help control the laser interaction with the material while producing legible codes, text and graphics.
The D-5000 DUO Green uses a 532 nm DPSS laser source based on an Nd:YVO4 active medium. This wavelength is suitable for selected plastic-marking applications where a clear, defined result and controlled thermal impact are important.
Short pulse duration and high peak power help reduce heat transfer to the material during marking. This makes the system a strong option for technical plastics and other sensitive substrates that need high-contrast identification without unnecessary thermal stress.
DUO technology dedicates one processor to data processing and another to laser control. This helps maintain efficient cycle times when marking variable information, such as batch numbers, dates, serial numbers and individual codes.
Use the D-5000 DUO Green to mark 1D and 2D codes, DataMatrix codes, QR codes, text, references, logos and technical information directly onto suitable components. It supports permanent identification for traceability, quality control and product personalisation.
The air-cooled design and single-phase power supply simplify installation in industrial environments. The system is available in configurations selected according to the material, required contrast, code size and production cycle.

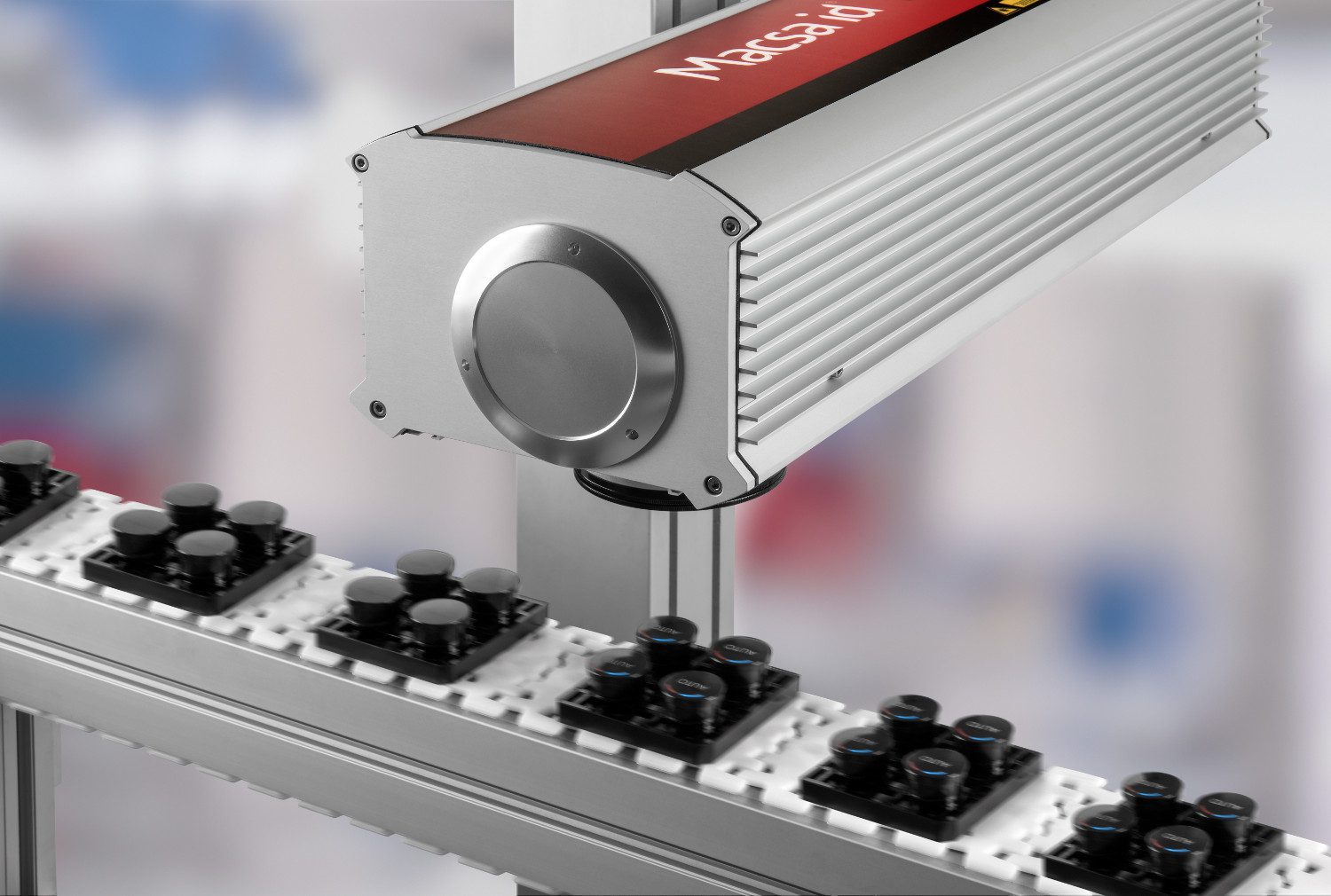

The D-5000 DUO Green can be integrated into automated production lines through TCP/IP communication and digital I/O. It can also be configured for static or semi-automatic applications with the iLaserBox range of laser workstations.
The documented range includes 5 W, 10 W and 1.5 W PS options. The PS version provides a shorter pulse width and higher peak power for applications that require even tighter control of thermal impact.
Different optics can be selected according to the required marking area, code size, working distance and product geometry.
Material composition, colour, additives, surface finish and required code quality all affect the final result. Send us a sample and we will help define the appropriate laser power, optics, marking parameters and integration setup for your application.
