idBlocks Pallet 6015

idBlocks Pallet 6015: robotic pallet labelling machine

The idBlocks Pallet 6015 is a robotic pallet labelling machine for high-speed print-and-apply identification at the end of the production line. Its articulated arm is controlled by high-speed servomotors to place labels on selected front, side and rear pallet faces.

The system can apply two labels to two pallet faces in a single stop, avoiding a dedicated pallet-rotation step for standard front-and-side labelling. Depending on the final configuration, label content and pallet flow, idBlocks Pallet 6015 can label more than 200 pallets per hour.

High-speed multi-face pallet labelling

Apply two labels in one pallet stop

idBlocks Pallet 6015 applies two labels to different pallet faces during one controlled stop. This supports clear pallet identification while keeping the labelling sequence compact for fast end-of-line operations.

The servo-controlled arm reaches the required label positions without requiring the pallet to be turned for a standard two-face application.

Built for demanding logistics throughput

For operations where pallet output is a key requirement, the system can label more than 200 pallets per hour. Actual performance depends on the number of labels, label size, printed content, pallet dimensions, transfer time and line conditions.

Place labels where your pallet flow requires them

Servo-controlled articulated arm

The high-speed articulated arm is designed to position labels accurately on selected pallet faces. It can be configured around the pallet orientation, required label position and conveyor layout.

Front, side and rear label positions

The 6015 can be assessed for label placement on the front, sides and rear of the pallet. This flexibility helps support logistics applications where labels need to be visible from more than one point during storage, handling or receiving.

Extra-reach configuration for front-face access

An extra-long arm configuration of up to 1,100 mm can be specified for applications that require extended access to the front of the pallet. Macsa id reviews the real pallet layout before defining the most suitable arm configuration.

Print variable logistics labels in real time

Information for every pallet

idBlocks Pallet 6015 prints thermal-transfer labels as they are required, supporting changing pallet data without relying on a pre-printed label buffer.

Typical label content includes:

  • SSCC codes and logistics identifiers.
  • Product references and descriptions.
  • Batch and lot information.
  • Production, best-before and dispatch dates.
  • Linear barcodes, QR codes and Data Matrix codes.
  • Destination, route and shipping information.
  • Traceability data for palletised loads.

Connect label data to your production process

The system can be integrated with pallet conveyors, automated handling equipment and production or warehouse-management systems. This allows the correct variable information to be received and applied at the right point in the pallet flow.

Protect traceability at the point of application

Barcode verification

An optional barcode scanner can be integrated into the applicator pad to support verification after the label is applied. If a code cannot be correctly verified, the system can provide a warning for operator review.

Closed-cabin installation

The idBlocks Pallet 6015 incorporates a closed cabin. A pressurisation damper can be specified where the installation environment requires additional protection.

Label application at different heights

An optional lift system allows the applicator position to be adjusted for labels placed at different heights. This is useful where pallet formats, product stacks or required label positions vary.

Key features

Servo-controlled articulated arm

High-speed servomotors control the arm for flexible label placement on selected pallet faces.

Two labels in one stop

Apply two labels to two pallet faces during one controlled pallet stop.

Multi-face pallet labelling

Configure label positions across the front, sides and rear of the pallet according to the logistics requirement.

More than 200 pallets per hour

Supports high-throughput pallet labelling, with final output dependent on the application and line conditions.

Extra-reach arm option

An arm configuration of up to 1,100 mm can be assessed for applications requiring extended front-face access.

Verification and height-adjustment options

Specify barcode verification, a closed-cabin configuration and a lift system around the production environment and pallet format.

Typical applications

idBlocks Pallet 6015 is suitable for:

  • High-speed end-of-line pallet identification.
  • SSCC and logistics pallet labels.
  • Food and beverage distribution.
  • Pharmaceutical and healthcare logistics.
  • Consumer goods, retail and e-commerce dispatch.
  • Warehouses and distribution centres.
  • Pallet traceability with batch, date, barcode and shipping information.

Configure your pallet-labelling project

The right configuration depends on the pallet dimensions, label size, required label faces, conveyor layout, line speed, data source and environmental conditions.

For two labels on front and side faces in one stop, compare idBlocks Pallet 6011. For front and side labelling in two stops, see idBlocks Pallet 6013 / 6014. For one-side pallet labelling, explore idBlocks Pallet 6020.

Discover the full print-and-apply labelling machine range or contact the Macsa id UK team to discuss your application.

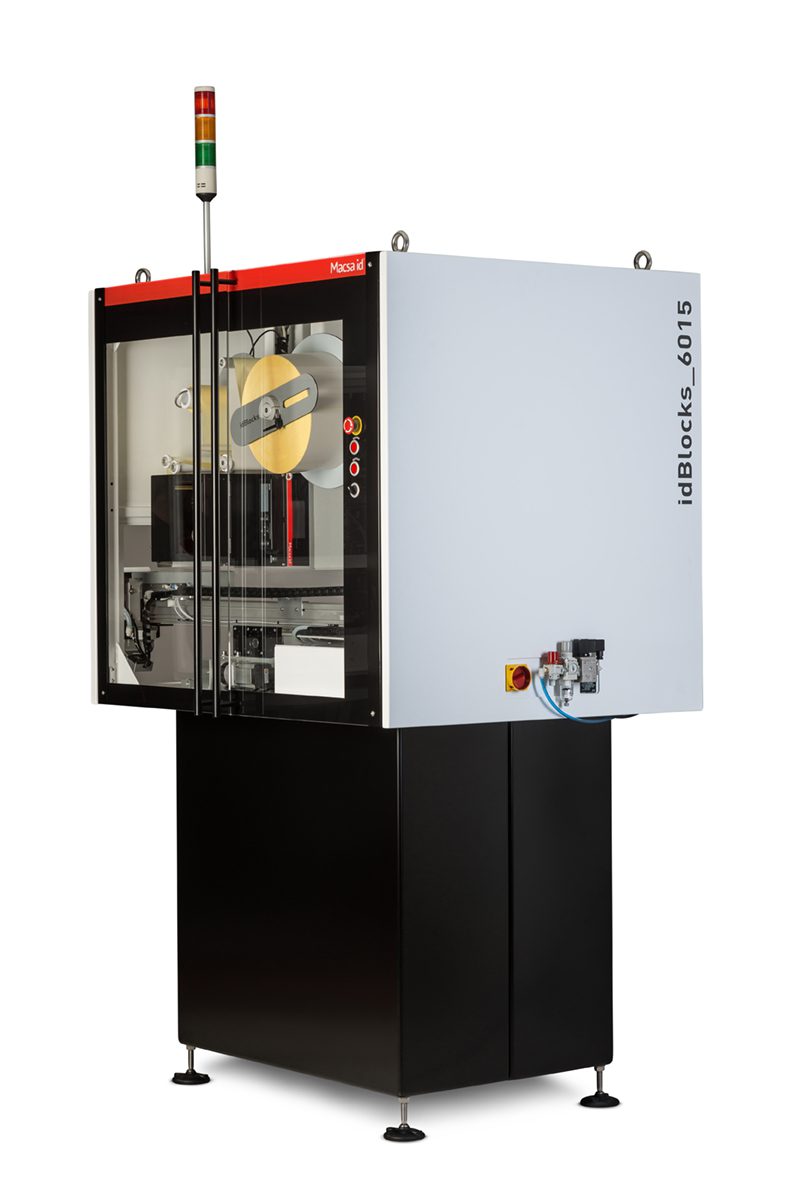

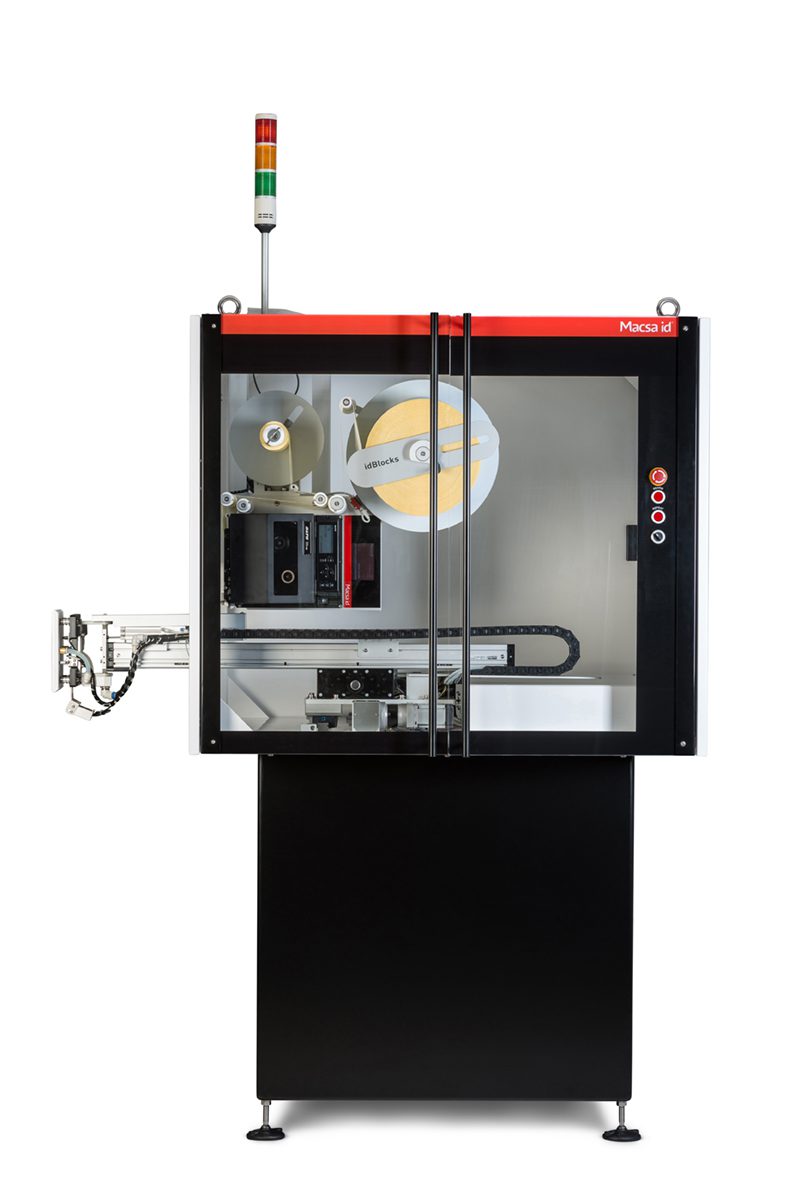

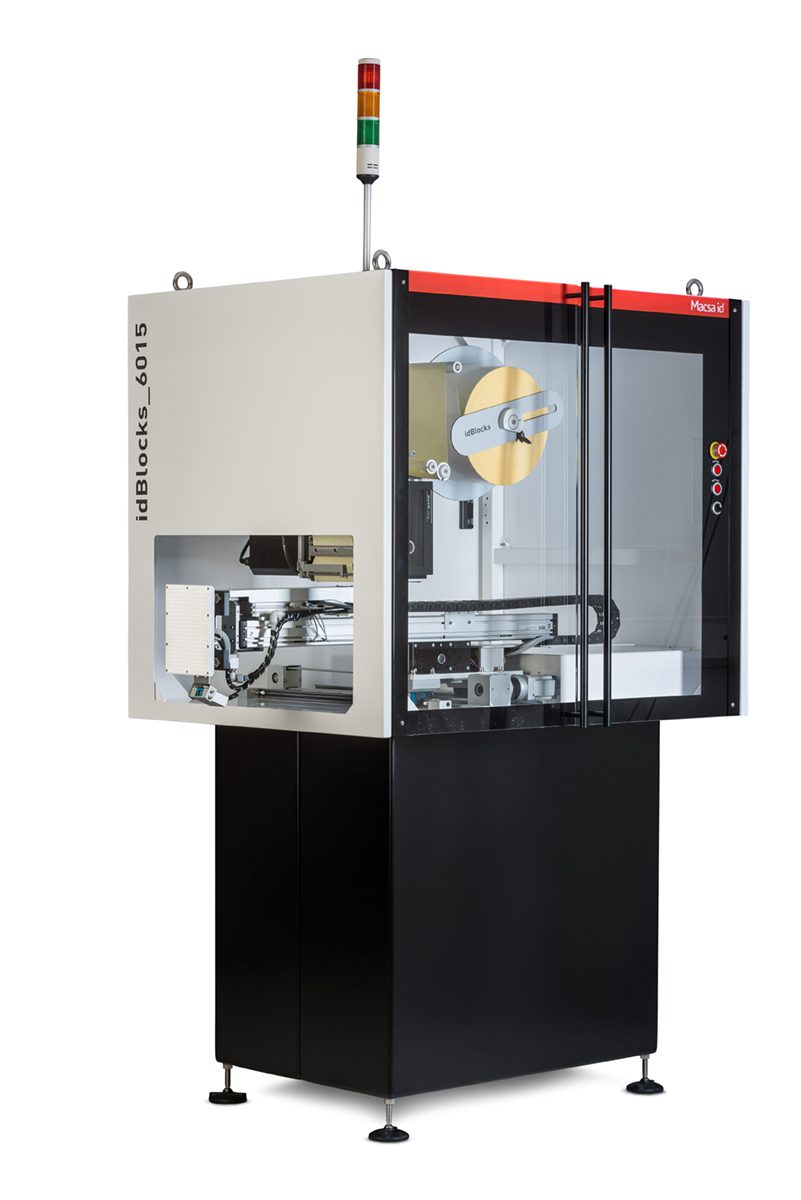

idBlocks Pallet 6015 robotic pallet labelling machine
Servo-controlled arm applying two pallet labels in one stop
High-speed print-and-apply pallet labelling system
Servo-controlled articulated armHigh-speed servomotors control the arm for accurate label placement on selected pallet faces.
Two labels in one stopApply two labels to two different pallet faces during one controlled pallet stop.
Multi-face label placementConfigure front, side and rear label positions around the pallet flow and logistics requirements.
More than 200 pallets per hourSupports high-throughput pallet labelling, with final output depending on the label format, pallet dimensions and line conditions.
Real-time variable label printingGenerate thermal-transfer labels with SSCC codes, barcodes, 2D codes, batch data, dates and shipping information as required.
